Real-Time WebRTC
Stream video and exchange control data across networks using WebRTC. Puffin and the controller device connect to the internet and use a signaling server to establish the remote session.
Built for real-time teleoperation

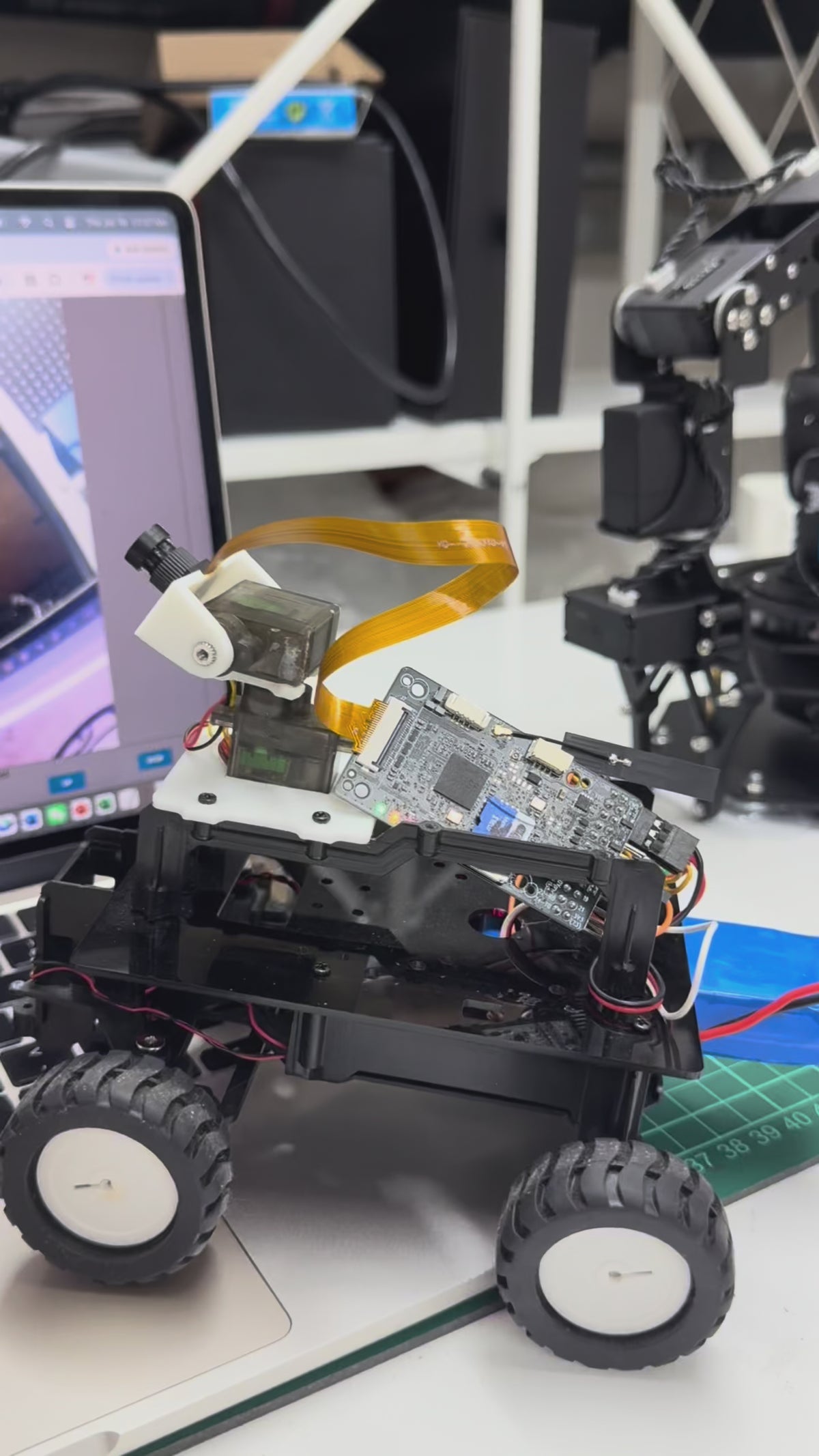

Add live video and responsive remote control to robots, RC vehicles, and connected projects without assembling a full computer stack.
Control From Almost Anywhere
Operate your project from a PC, Mac, or phone through a web browser or supported app. Puffin is designed for remote operation across different networks, not only within the same local Wi-Fi network.
Compact Hardware Integration

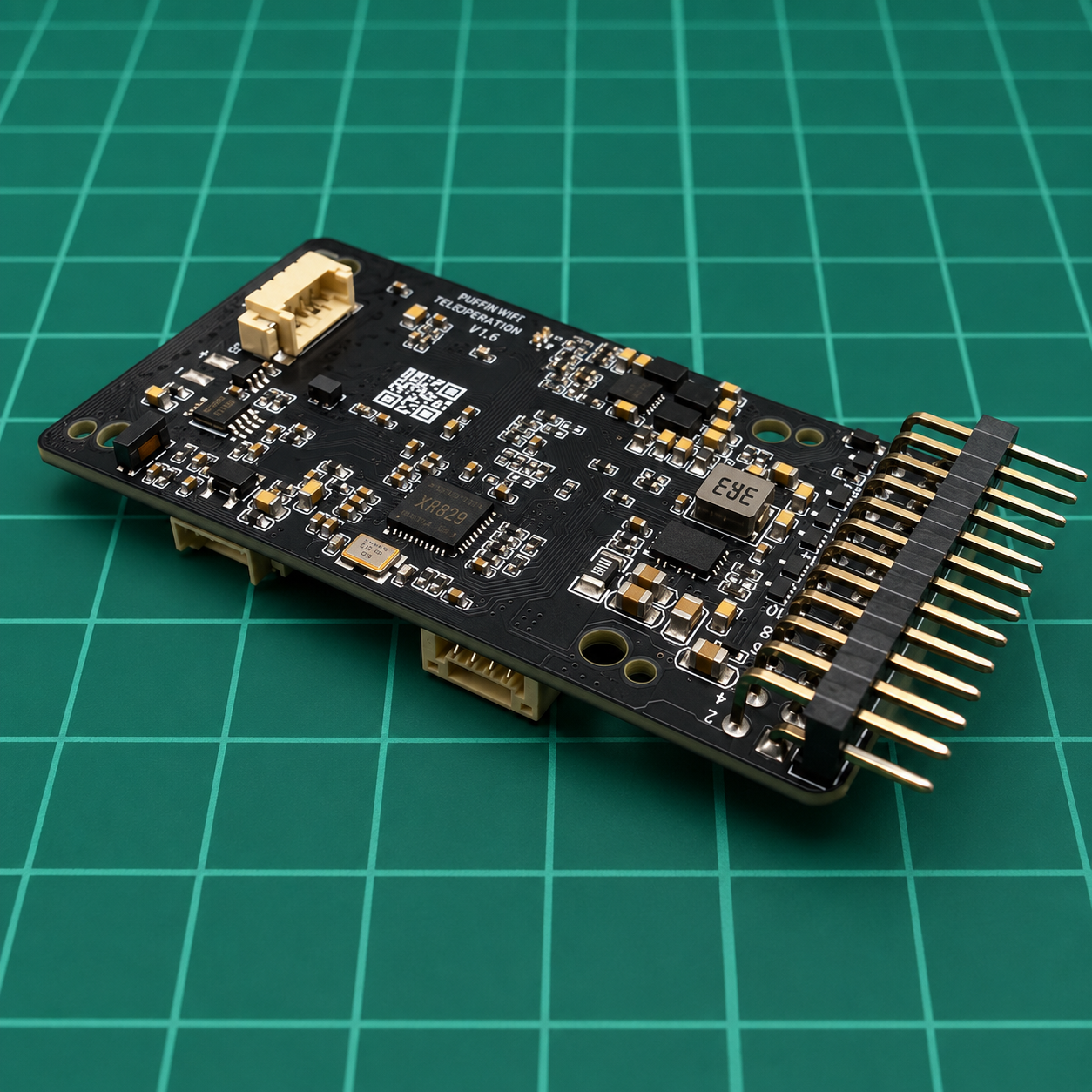

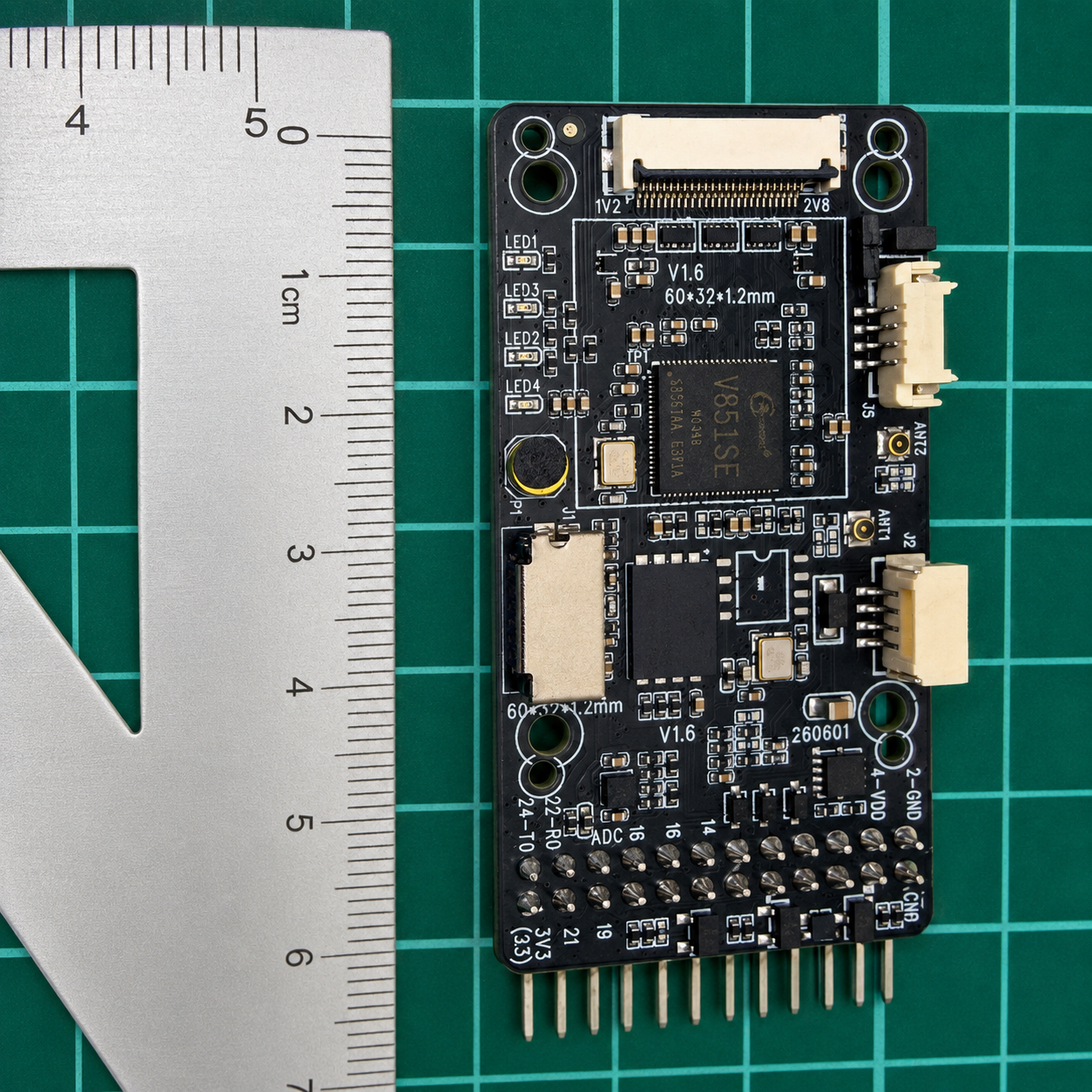

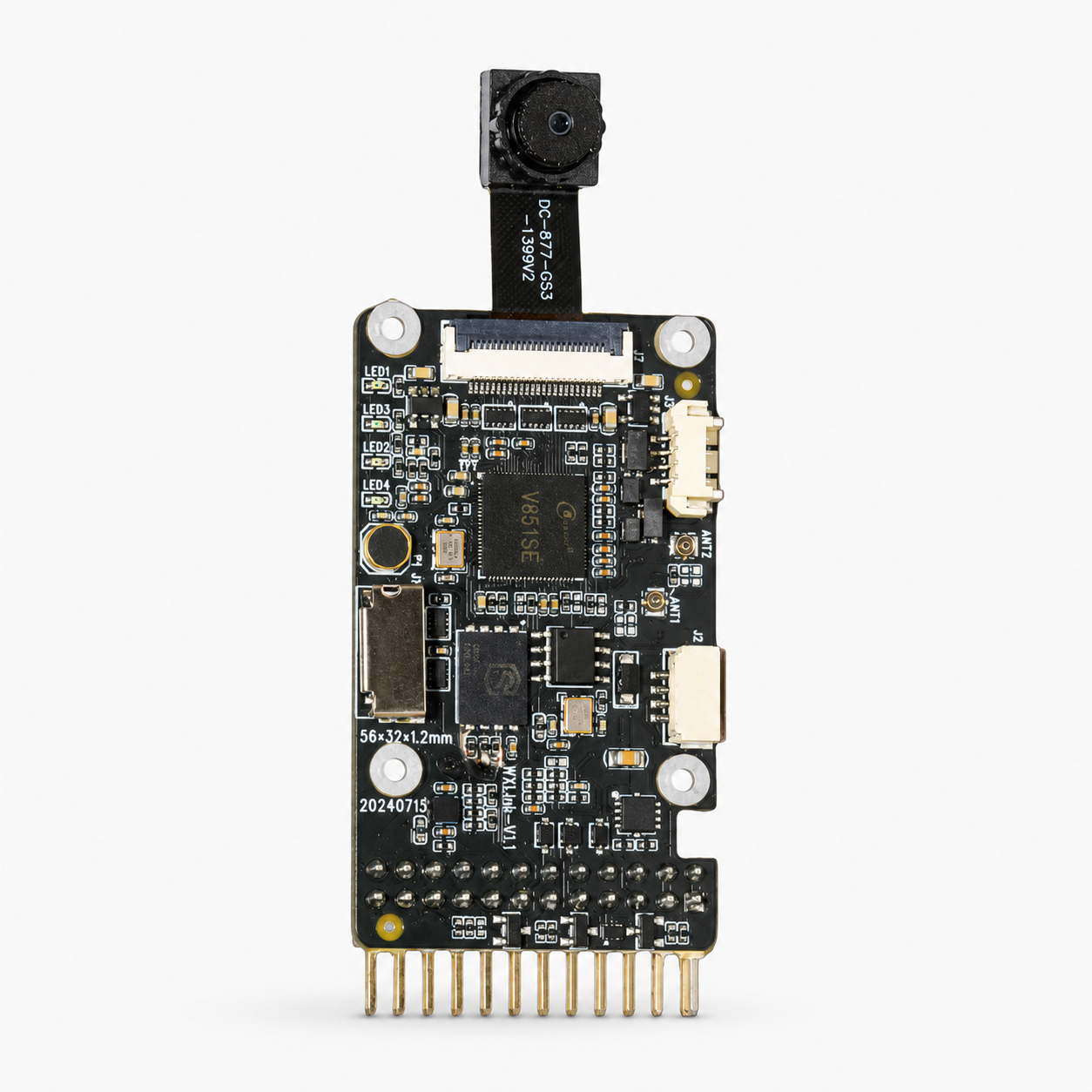

A 60 × 32 mm, approximately 10 g Linux board with camera support, Ethernet, PWM, UART, GPIO, I²C, and microSD storage for robotics and DIY integration.
Technical specifications
| Specification | Puffin WiFi |
|---|---|
| Product |
Puffin WiFi |
| Board dimensions |
60 × 32 mm |
| Board weight |
Approx. 10 g, board only |
| SoC |
Allwinner V851SE |
| Application processor |
Arm Cortex-A7 @ 900 MHz |
| Real-time processor |
RISC-V core @ 600 MHz |
| Operating system |
Tina Linux |
| Wi-Fi |
2.4 GHz Wi-Fi |
| Remote technology |
WebRTC video and control |
| Controller devices |
PC, Mac, and phone |
| Control interface |
Web browser or supported app |
| Ethernet |
1× Ethernet interface |
| MIPI camera |
640 × 480 @ 30 fps |
| IP camera |
Up to 4K @ 30 fps over Ethernet |
| Video codec |
H.264 and H.265 encoding and decoding |
| PWM |
4× PWM control outputs |
| UART |
2× UART, including 1× dedicated debug UART |
| GPIO |
3× GPIO |
| I²C |
1× I²C interface; software validation in progress |
| Storage |
microSD/TF card slot |
| Input voltage |
3.2–19 V DC |
| Recommended adapter |
5 V / 1 A |
| Typical power |
Approx. 1.5 W |
| Cellular |
Not included; Wi-Fi-only version |

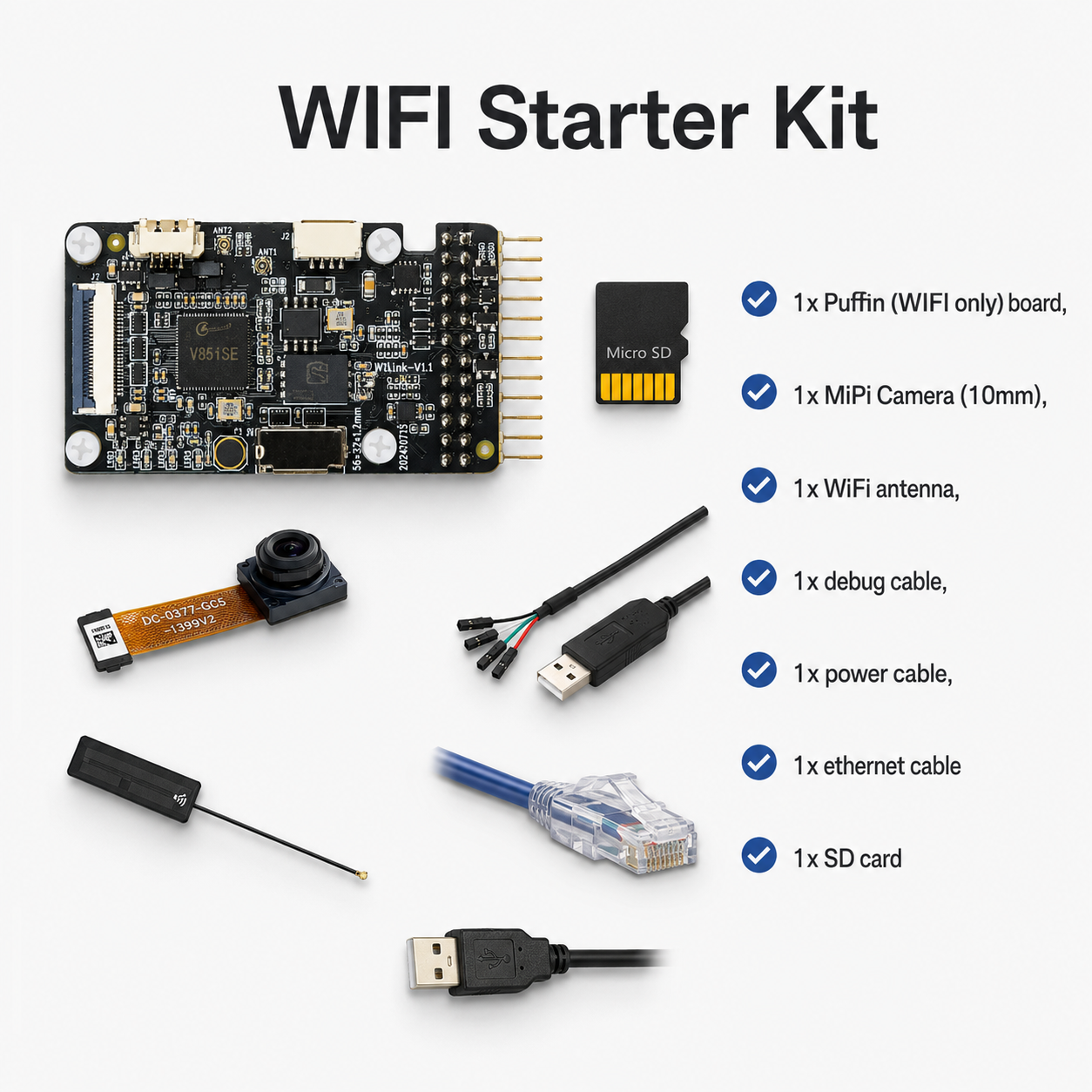

What’s in the Starter Kit
Included items
- 1× Puffin WiFi board
- 1× MIPI camera
- 1× Wi-Fi antenna
- 1× 4GB microSD card
- 1× Power cable
- 1× Ethernet cable
- 1× UART debug cable
Required but not included
5V/1A power adapter and an internet connection for both Puffin and the controller device.
Frequently asked questions
Can Puffin WiFi be controlled over the internet?
Yes. Puffin WiFi uses WebRTC for real-time video and control across different networks. Both Puffin and the controller device need internet access to reach the signaling server and establish the remote connection.
Which devices can I use as the controller?
You can control Puffin from a PC, Mac, or phone through a web browser or supported app.
Does Puffin WiFi include 4G or 5G?
No. This is the Wi-Fi-only version of Puffin and supports 2.4 GHz Wi-Fi. It does not include cellular connectivity.
Which cameras are supported?
The included MIPI camera operates at 640 × 480 and 30 fps. Puffin also supports Ethernet IP cameras up to 4K at 30 fps, with H.264 and H.265 encoding and decoding.
Which control interfaces are available?
Puffin provides four PWM outputs, two UART interfaces including one dedicated debug UART, three GPIO connections, and an I²C interface. I²C software validation is still in progress.
What power supply do I need?
Puffin accepts 3.2–19 V DC input. A 5V/1A power adapter is recommended for the Starter Kit and is not included.
What is included in the Starter Kit?
The kit includes the Puffin WiFi board, MIPI camera, Wi-Fi antenna, 4GB microSD card, power cable, Ethernet cable, and UART debug cable.
How much is U.S. shipping?
Tracked shipping to the United States is USD 15. Estimated delivery dates are calculated at checkout, with a configured transit time of 10–14 business days.
